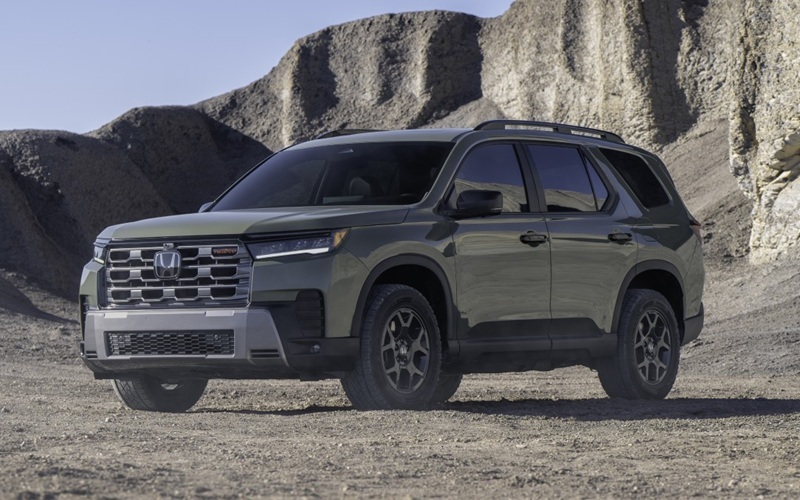

2026 Honda Pilot: What Suspension and Steering Does It Use?

The Honda Pilot is equipped with a combination of independent suspension systems and electronically assisted steering designed to balance ride comfort, handling stability, and load management. These systems integrate mechanical components with electronic controls to optimize vehicle dynamics under varying driving conditions. Understanding the suspension and steering architecture provides insight into how the vehicle maintains stability, traction, and driver control.

The 2026 Honda Pilot Suspension System

The suspension system in the new Honda Pilot manages vertical wheel movement, maintains tire contact with the road, and isolates the cabin from road irregularities.

Front Suspension: MacPherson Strut System

The front suspension uses a MacPherson strut configuration, a widely adopted design due to its compactness and structural efficiency.

Components

• Strut assembly (shock absorber integrated with coil spring)

• Lower control arm

• Steering knuckle

• Stabilizer (anti-roll) bar

• Bushings and mounting points

Functionality

The MacPherson strut serves both as a suspension damper and a structural component that supports lateral loads. The coil spring absorbs vertical forces, while the damper controls oscillations by dissipating kinetic energy into heat.

The lower control arm allows controlled wheel movement while maintaining alignment geometry. The stabilizer bar connects the left and right suspension assemblies to reduce body roll during cornering.

Engineering Characteristics

• Reduced number of components compared to double-wishbone systems

• Efficient packaging for transverse engine layouts

• Moderate camber control under load

Rear Suspension: Multi-Link System

The rear suspension uses a multi-link independent design to enhance ride comfort and handling precision.

Components

• Multiple lateral and longitudinal control arms

• Coil springs

• Shock absorbers

• Subframe assembly

• Stabilizer bar

Functionality

Each wheel is connected through several arms that control its motion in multiple planes. This allows precise tuning of toe and camber angles during suspension travel.

The separation of spring and damper components enables more flexibility in tuning ride characteristics. The subframe isolates vibrations from the cabin.

Engineering Advantages

• Improved wheel alignment control during dynamic movement

• Enhanced ride comfort due to better isolation

• Increased stability during cornering and braking

Damping and Ride Control

Shock Absorbers

Shock absorbers regulate suspension movement by controlling rebound and compression rates.

Operation

• Hydraulic fluid flows through internal valves

• Resistance is generated based on piston speed

• Converts motion energy into thermal energy

Impact on Performance

• Reduces oscillations after road impacts

• Maintains tire contact with the road surface

• Improves overall vehicle stability

Coil Springs

Coil springs support the vehicle’s weight and absorb vertical forces.

Characteristics

• Spring rate determines stiffness

• Designed to balance comfort and load capacity

• Works in conjunction with dampers for controlled motion

Stabilizer Bars

Stabilizer bars reduce body roll by linking opposite wheels.

Function

• Transfers load between left and right sides

• Increases roll stiffness

• Enhances cornering stability

Steering System Architecture

The Honda Pilot uses an electric power steering (EPS) system integrated with electronic control modules.

Electric Power Steering (EPS)

EPS replaces traditional hydraulic systems with an electrically assisted mechanism.

Components

• Electric motor

• Steering column or rack-mounted assist unit

• Torque sensor

• Steering control module

Functionality

The torque sensor detects driver input at the steering wheel. The control module calculates the required assistance and activates the electric motor accordingly.

Variable Assistance

• Low speeds: higher assistance for easier maneuvering

• High speeds: reduced assistance for improved stability

Steering Rack and Pinion Mechanism

The EPS system operates through a rack-and-pinion configuration.

Components

• Steering rack

• Pinion gear

• Tie rods

Operation

Rotational input from the steering wheel is converted into linear motion, which turns the wheels via the tie rods.

Integration with Vehicle Dynamics Systems

The suspension and steering systems are integrated with electronic stability and traction systems.

Vehicle Stability Assist (VSA)

This system monitors vehicle motion and corrects deviations.

Inputs

• Wheel speed sensors

• Yaw rate sensor

• Steering angle sensor

Interaction

• Applies braking to individual wheels

• Adjusts engine output

• Works with steering input to maintain control

All-Wheel Drive (AWD) System Interaction

In AWD-equipped versions, torque distribution affects suspension loading and steering behaviour.

Effects

• Improved traction on low-friction surfaces

• Redistribution of forces across axles

• Enhanced directional stability

Geometry and Alignment

Key Parameters

• Camber angle

• Caster angle

• Toe angle

These parameters determine tire contact and handling behaviour.

Camber

Controls the angle of the tire relative to vertical. Negative camber improves cornering grip.

Caster

Affects steering stability and return-to-center behaviour.

Toe

Influences straight-line stability and tire wear.

Noise, Vibration, and Harshness (NVH) Control

The suspension system includes features to minimize NVH.

Isolation Techniques

• Rubber bushings

• Subframe mounting systems

• Damped components

These reduce the transmission of road noise and vibration into the cabin.

Load Management and Ground Clearance

The suspension can support varying loads.

Load Handling

• Spring rates adjusted for passenger and cargo capacity

• Dampers tuned for consistent ride height

Ground Clearance

Maintained to balance off-road capability and aerodynamic efficiency.

Durability and Maintenance Considerations

Wear Components

• Bushings

• Ball joints

• Shock absorbers

These components experience gradual wear and require periodic inspection.

Diagnostic Systems

Electronic systems can detect irregularities in steering assistance or stability control.

Technicians at T&T Honda may use diagnostic tools to evaluate steering response, sensor data, and suspension performance.

Steering Feedback and Control Precision

EPS systems provide consistent feedback.

Feedback Characteristics

• Reduced mechanical drag compared to hydraulic systems

• Programmable response curves

• Integration with driver assistance systems

Advanced Control Features

Steering Assist Systems

Some configurations include active steering assistance features.

Examples

• Lane keeping assist

• Collision avoidance steering input

These systems use sensors and cameras to influence steering behaviour under specific conditions.

System Redundancy and Safety

Fail-Safe Mechanisms

• EPS fallback modes

• Mechanical linkage remains functional without electrical assist

This ensures that steering control is retained even in the event of an electronic failure.

2026 Honda Pilot FAQ

What type of front suspension does the 2026 Honda Pilot use?

It uses a MacPherson strut front suspension, which combines a coil spring and shock absorber into a single structural unit.

How does the rear multi-link suspension improve performance?

The multi-link design allows precise control of wheel movement, improving ride comfort, stability, and handling during dynamic driving conditions.

What is the advantage of electric power steering over hydraulic systems?

Electric power steering reduces energy consumption, allows variable assistance, and integrates easily with electronic driver assistance systems.

Does the suspension system affect fuel efficiency?

Yes, optimized suspension geometry and reduced rolling resistance contribute to improved efficiency by maintaining proper tire contact and alignment.

How are steering and suspension issues diagnosed?

Diagnostic tools analyze sensor data, steering input, and system responses to identify faults. T&T Honda can perform these evaluations using specialized equipment.
